Simple Sequential LED Chaser Circuit using NE555 and BC547

Introduction:

A sequential LED chaser circuit is a basic yet fascinating electronic project commonly used in applications like decorative lighting, displays, and educational demonstrations. The circuit creates a visual effect where a series of LEDs light up one after another in a repeating sequence, giving the appearance of “chasing” lights. The circuit typically uses a 555 timer IC configured in astable mode to generate clock pulses, controlling the switching of transistors. These transistors activate LEDs one after another. Resistors limit current, and capacitors manage timing, determining the speed of the LED sequence. This type of circuit is commonly used in decorative lighting, educational projects, and displays due to its simple design and visually engaging output.

Component Details:

S.No	Components	Value	Qty.
1.	IC	NE555	1
2.	Transistor	BC547	5
3.	Capacitor	100uf	3
4.	Resistor	4.7k, 10K, 1K	3, 5 ,5
5.	Diode	1N4007	2
6.	LED	–	10
7.	DC Supply	12V	–

NE555 Pinout:

The NE555 IC is a versatile timer integrated circuit used for generating precise time delays, oscillations, and pulse generation. It operates in three modes: astable (free-running), monostable (one-shot), and bistable (flip-flop). In astable mode, it produces continuous square wave signals, while in monostable mode, it generates a single pulse based on an external trigger. Its simplicity and flexibility make it widely used in timing, waveform generation, and control applications.

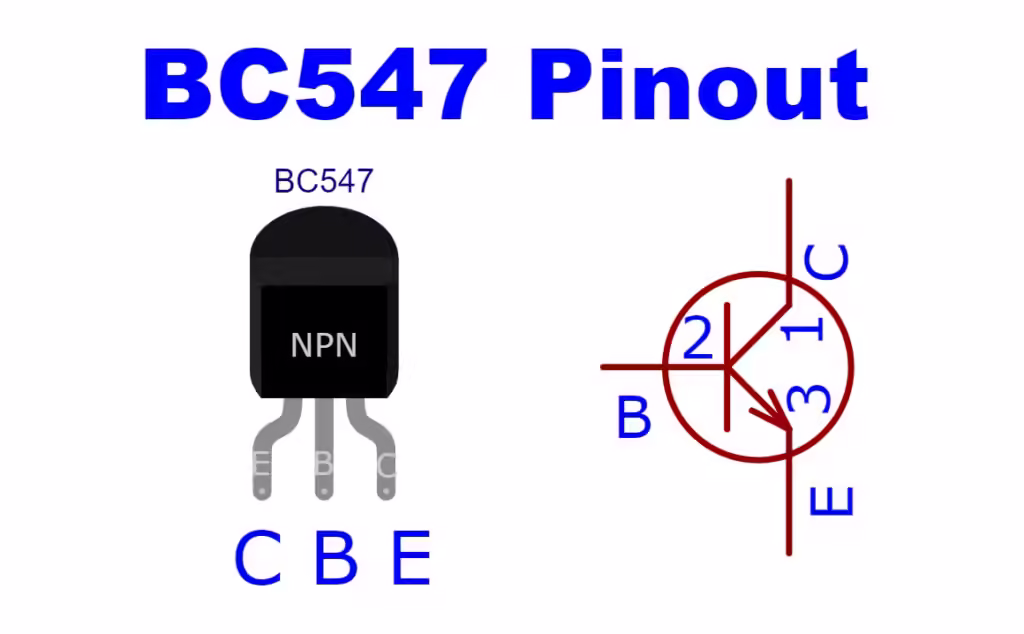

BC547 Pinout:

The BC547 is a popular NPN bipolar junction transistor (BJT) used for general-purpose switching and amplification. It operates in low-power applications, handling currents up to 100mA and voltages up to 45V. When a small current flows through its base, it allows a larger current to flow between the collector and emitter. Widely used in signal amplification, switching circuits, and basic electronic projects, the BC547 is known for its reliability and ease of use.

Circuit Diagram:

Working Principle:

1. 555 Timer IC:
   • The 555 timer is often configured in astable mode to generate a continuous series of clock pulses. These pulses are crucial in controlling the timing sequence in which the LEDs turn on and off.
2. Transistors:
   • Transistors like the BC547 are used to switch the LEDs on and off. When the transistor receives a signal from the timer circuit, it conducts and allows current to flow through the corresponding LED, turning it on. The transistors switch sequentially, illuminating the LEDs in a predefined pattern.
3. LEDs (Light Emitting Diodes):
   • The LEDs form the visual part of the circuit. The number of LEDs in the chaser circuit can vary depending on the design. They light up in a repeating pattern, creating the chasing or running effect.
4. Resistors:
   • Resistors are used to limit the current passing through the LEDs and to set the biasing for transistors. This prevents the LEDs from burning out and ensures the circuit operates within safe parameters.
5. Capacitors:
   • Capacitors are used in timing circuits to control the frequency of the pulses generated by the 555 timer, which affects how fast the LEDs chase each other.

How It Works:

• When power is supplied to the circuit, the 555 timer generates a clock signal.
• This clock signal is fed into the base of the switching transistors sequentially.
• As each transistor turns on, it allows current to flow through its corresponding LED, turning it on.
• After a short interval (determined by the timer), the next transistor in the sequence activates, turning on the next LED and turning off the previous one. This process repeats, creating the visual “chasing” effect.

Applications:

• Decorative Lighting: Sequential LED chasers are often used in festive lights or light displays to create dynamic, visually appealing patterns.
• Educational Tools: This circuit is popular in educational kits to demonstrate the working of basic electronic components and sequential switching.
• Indicators: They can also be used as indicators in various systems to display sequential events or states.

In conclusion, a sequential LED chaser is a simple yet effective electronic circuit that demonstrates the principles of timing, switching, and visual effects. It is a great project for beginners in electronics and can be adapted for a variety of practical applications.
