Introduction
The USB LED Circuit is a simple and efficient way to power an LED using a standard USB port. USB ports provide a regulated 5V power supply, making them an excellent choice for small electronic circuits such as LED indicators and emergency lights. This circuit is commonly used for night lights, USB-powered desk lamps, and DIY electronics projects.
Components Required
Below is a list of the essential components used in the USB LED Circuit:
| Component | Value | Description |
|---|---|---|
| USB Plug Male | – | Connects the circuit to a USB port |
| White LED | – | Provides illumination |
| Resistor | 47Ω | Limits the current flowing through the LED |
| Connecting Wires | – | For circuit connections |

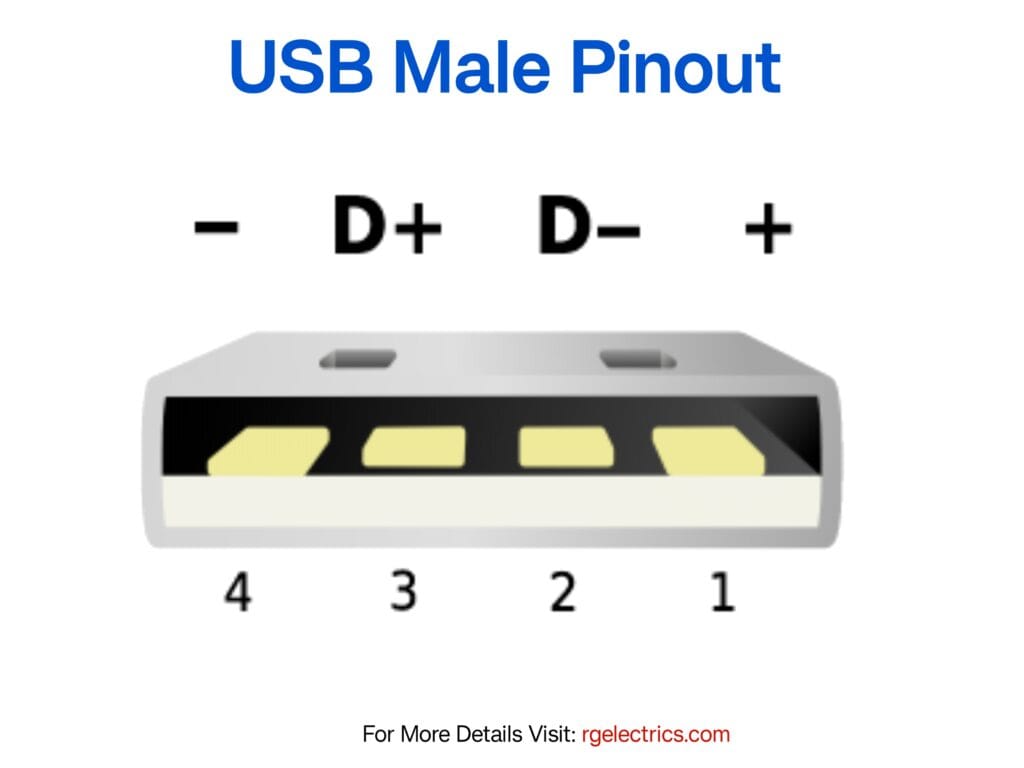

USB Pinout

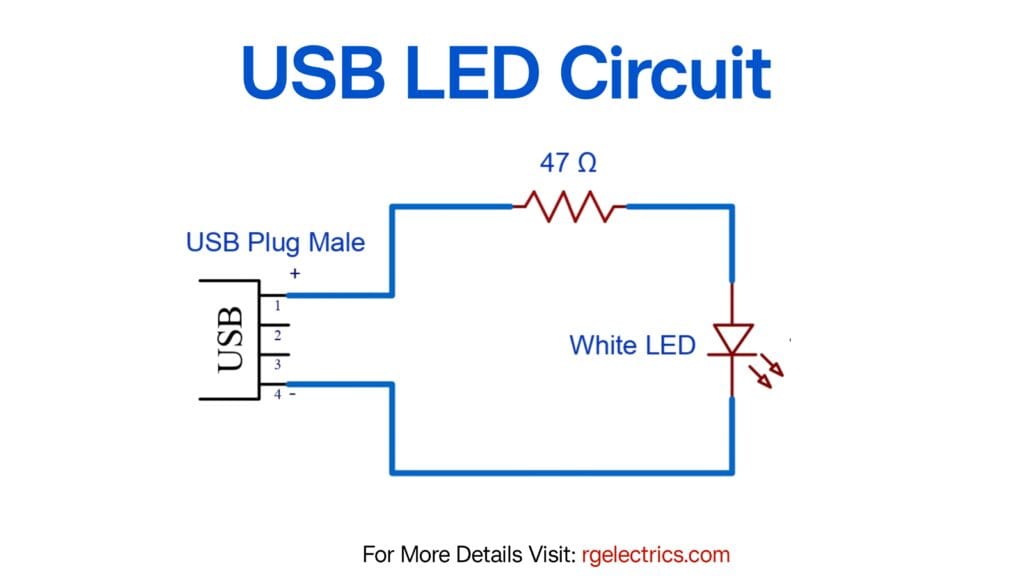

Circuit Diagram
Circuit Design and Working
The USB LED Circuit is designed to be very simple and consists of only three main components: a USB plug, a current-limiting resistor, and a white LED. Here’s how it works:
- Power Source: The circuit is powered through the USB plug, which provides a stable 5V DC output.
- Current Limiting: A 47Ω resistor is placed in series with the LED to prevent excessive current flow, ensuring the LED operates within safe limits.
- LED Illumination: When the circuit is connected to a USB port, the current flows through the resistor and powers the LED, making it light up.
Circuit Explanation
- USB Connection: The USB plug has four pins, but only two are used for power: Pin 1 (+5V) and Pin 4 (GND).
- Resistor Function: The 47Ω resistor is necessary to limit the current and protect the LED from burning out due to excessive power.
- LED Functioning: The LED emits light when powered by the 5V supply, and its brightness depends on the current flowing through it.
Applications
The USB LED Circuit is widely used in various applications, including:
- USB Night Lamps: Portable LED lamps that can be powered by a laptop or power bank.
- DIY Electronics Projects: Ideal for learning about basic electronic components and circuits.
- Indicator Lights: Used in gadgets to indicate power status.
- Emergency Lighting: Can be connected to a power bank for emergency lighting solutions.
Conclusion
The USB LED Circuit is an easy-to-build, cost-effective lighting solution that utilizes the 5V power output from a USB port. With just a USB plug, a resistor, and an LED, you can create a functional USB-powered light source for various applications. Whether you’re a beginner in electronics or an enthusiast looking for a small DIY project, this circuit is an excellent choice!
