An AC Line Detector Circuit is a simple and useful device designed to detect the presence of an alternating current (AC) voltage in electrical systems. It is commonly used by electricians, technicians, and hobbyists to identify live wires, ensuring safety during electrical work. The primary purpose of this circuit is to sense the electromagnetic field emitted by AC voltage lines without requiring direct contact, which minimizes the risk of electric shock.
This particular circuit is built around the NE555 timer IC, which is widely used for timing and switching applications. The circuit includes components like a copper coil (antenna) for detecting the AC signal, a buzzer for audible alerts, and an LED for visual indication. When the copper coil detects an AC field, the NE555 timer triggers the output, activating the buzzer and LED.
The AC line detector is a simple yet effective tool for detecting AC lines in walls, cables, or electrical appliances, making it essential for safe electrical installation, repair, and maintenance work.
Component Details:
S.no
Components
Value
Qty.
1.
IC
NE555
1
2.
Resistor
10k, 220 Ohm
1,1
3.
Capacitor
10uf
1
4.
Buzzer
5V-9V
1
5.
LED
Red 5mm
1
6.
Copper Wire (for Antenna)
–
–
7.
Battery
5V – 9V
1
NE555 Pinout:

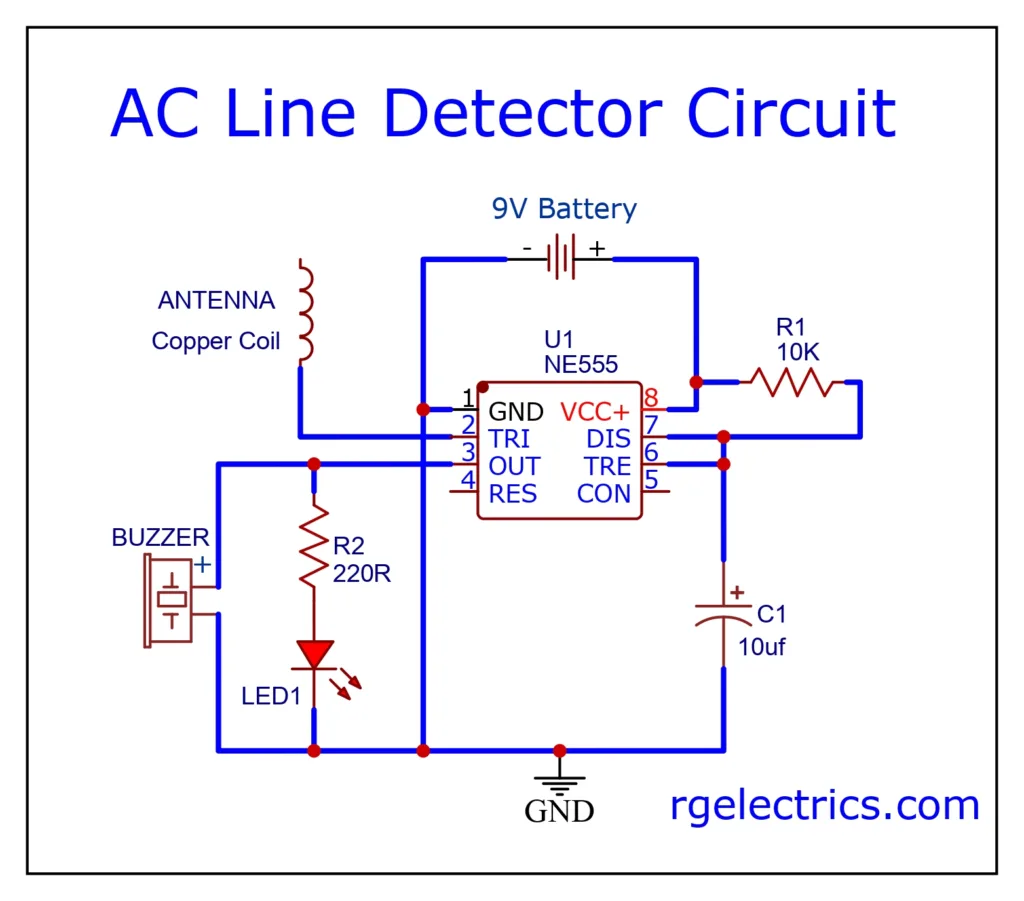

Circuit Diagram:
Circuit Working:
This AC Line Detector Circuit is designed to detect the presence of an alternating current (AC) line using a NE555 timer IC. The circuit is powered by a 9V battery, and a copper coil serves as the antenna to sense electromagnetic fields from nearby AC wires. The coil is connected to pin 2 (trigger) of the NE555, which acts as a comparator. When an AC line is detected, the NE555’s output on pin 3 goes high, activating both an LED and a buzzer as visual and auditory indicators. The LED is connected in series with a 220Ω resistor to limit current, while the buzzer provides an audible alert. The 10KΩ resistor (R1) and 10μF capacitor (C1) are connected to the threshold and discharge pins of the NE555, helping to stabilize and shape the timing of the circuit’s response. This circuit offers a non-contact method for detecting live AC lines, making it useful for electricians and DIY enthusiasts to safely identify wiring without touching it directly.
Applications:
The AC Line Detector Circuit has several practical applications:
Electrical Safety: It is commonly used by electricians and technicians to safely detect live AC wires without making direct contact, preventing accidental electric shocks while working on wiring systems.
Home Maintenance: Homeowners and DIY enthusiasts can use this device to locate hidden electrical wiring behind walls, floors, or ceilings before drilling or cutting, avoiding damage to live wires.
Troubleshooting: It helps in diagnosing electrical issues by detecting the presence of voltage in a circuit, such as confirming if an outlet, switch, or wire is live.
Appliance Testing: The circuit can be used to check if household appliances or power cords are receiving AC power, providing a quick way to assess functionality.
Non-Contact Voltage Detection: This device acts as a basic non-contact voltage tester, offering a simple and low-cost solution for detecting voltage in residential or commercial electrical systems.
