Introduction
A water level alarm circuit is designed to detect the level of water in a tank and trigger an alarm when it reaches a certain threshold. This type of circuit is commonly used in households, industries, and irrigation systems to prevent water wastage and overflow. The circuit presented here uses the NE555 timer IC in astable mode to generate a signal that activates a buzzer when water reaches the sensor probes.
Circuit Components
| S.No | Component Name | Value | Quantity |
|---|---|---|---|
| 1 | NE555 Timer IC | – | 1 |
| 2 | Resistor | 1kΩ | 1 |
| 3 | Resistor | 100kΩ | 1 |
| 4 | Capacitor | 2.2µF / 25V | 1 |
| 5 | Piezo Buzzer | – | 1 |
| 6 | Power Supply | 3.7V | 1 |
| 7 | Water Level Probes | – | 1 set |
NE555 Pinout

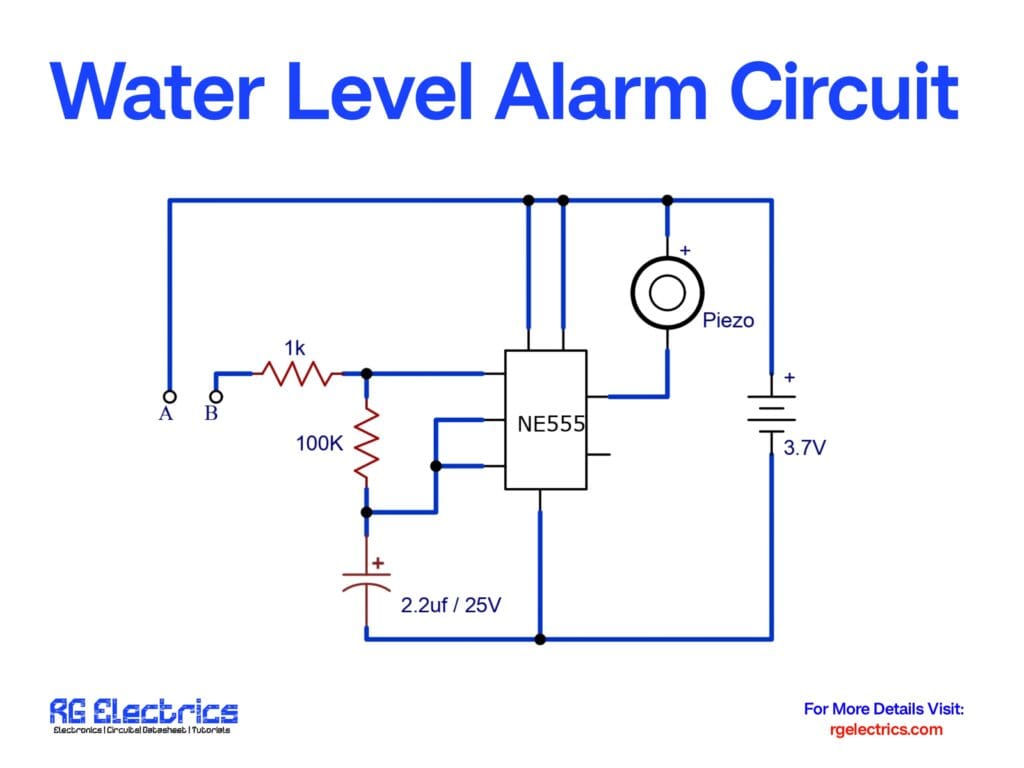

Circuit Diagram
Circuit Explanation
The water level alarm circuit operates based on the conductivity of water and the NE555 timer IC. Below is the working principle:
- Water Level Detection:
- The circuit has two probes labeled A and B placed at the desired water level inside the tank.
- When water touches both probes, it completes the circuit, allowing a small current to flow.
- Triggering the Timer:
- The small current passing through the water creates a voltage drop across the resistors (1kΩ and 100kΩ), which in turn triggers the NE555 timer IC.
- The capacitor (2.2µF / 25V) helps stabilize the circuit and avoids false triggering due to minor fluctuations.
- Activating the Buzzer:
- Once the NE555 timer is triggered, it switches to an active state, sending an output signal to drive the piezo buzzer.
- The buzzer produces a loud sound, alerting users that the water level has reached the set limit.
- Power Supply Considerations:
- The circuit is powered by a 3.7V battery, which is sufficient to operate the NE555 timer and the buzzer efficiently.
- The low power consumption ensures longer battery life and continuous operation without frequent maintenance.
Applications
- Water tank overflow prevention.
- Water level monitoring in industries.
- Irrigation system automation.
- Flood warning systems.
This water level alarm circuit provides a simple yet effective way to monitor and control water levels using the widely used NE555 timer IC. It can be easily modified for different voltage levels and alarm mechanisms, making it a versatile solution for various applications.
